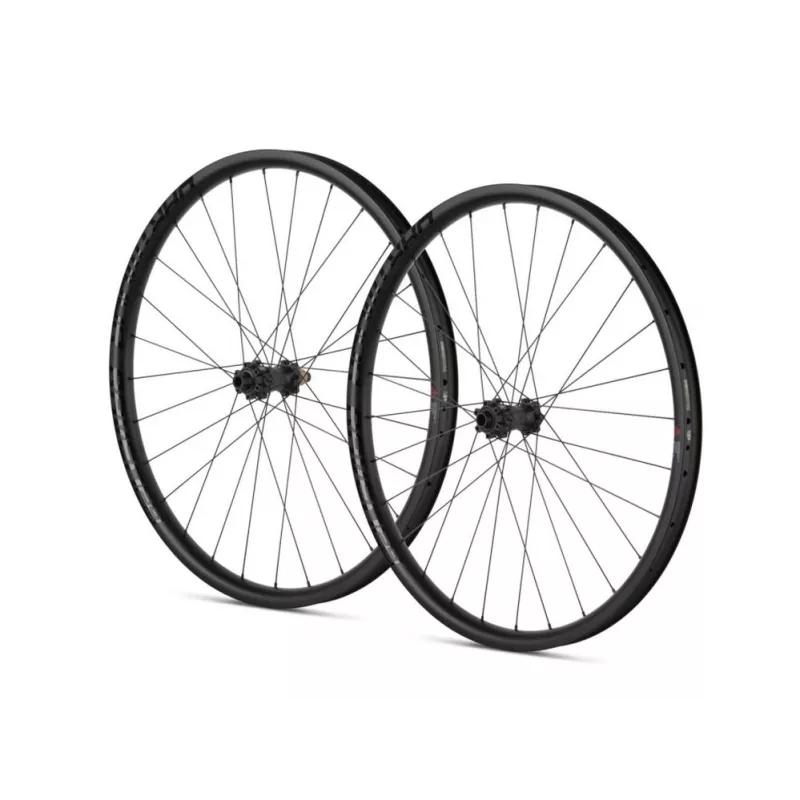

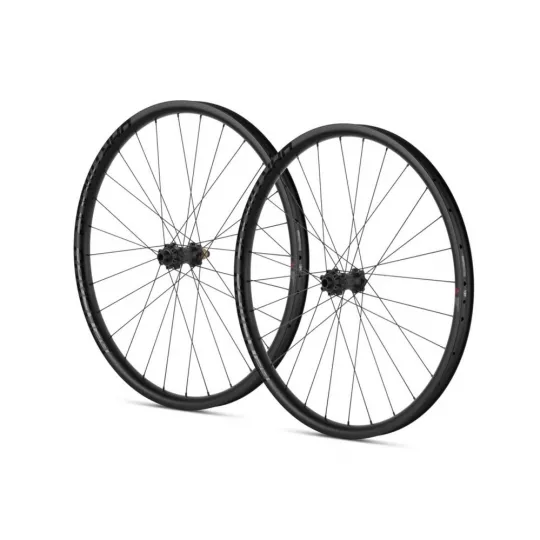

Dartmoor Raven Carbon Expert - Wheelset
High-end lightweight enduro wheelsets with new Dartmoor Raven carbon rims. Our new carbon rims were successfully tested by our team riders on the most demanding tracks including EWS courses. Raven rims are designed to give you enough balance of stiffness and comfort with high impact resistance. They are wide enough to safely use up to 2.6" large volume tires in a tubeless system. Wheels are equipped with our new Reel Expert hubs dedicated for straight-pull spokes. The rear hub use also new 108 engagement points freehub system with bigger pawls/ratchet ring design and one more bearing added in the freehub body for the increased strength necessary when used in the modern 12-speed drivetrains with wide-range cassettes. Twenty eight Pillar straight-pull triple butted 2.2/1.7/2.0 spokes are used in Raven wheels for a perfect balance between strength and weight necessary for enduro and trail applications.
Rear wheels are equipped with SRAM XD freehubs. Available as spare parts are also regular Shimano type and Shimano Microspline type freehubs. For bigger comfort an extended lifetime we strongly recommend using tire inserts with our Raven wheels.
SPECIFICATION
Sizes: 27.5; 29"
Holes: 28
Rims: Raven
Rear hub: Reel Expert straight-pull 148x12mm, 108 engagement points, SRAM XD freehub
Front hub: Reel Expert straight-pull 110x15mm
Spokes: Pillar straight-pull/triple butted black
Nipples: Pillar brass/DSN black
Recommended tire range size: 2.3"-2.6"
Weight: 885g / 955g
------------------------------------------
HUB SPECIFICATION
Rear: Dartmoor REEL Expert Straight-pull Boost Cassette 148x12
Sizes: 148x12mm;
Bearings: precision sealed bearings with high density grease, full contact sealings
Bearings type: body: 6902, freehub: 6902
Hub-shell: alu 6061-T6
Axle: 15mm, Cr-Mo
Cones: alu 7075-T6, push-in (both sides)
Freehub: Alu
Pawls: 6 pawls
Engagement points: 108
Holes: 28H
Front: Dartmoor REEL Expert Straight-pull Boost 110x15
Sizes: 110x15mm;
Bearings: precision sealed bearings with high density grease, full contact sealings
Hub-shell: alu 6061-T6
Axle: 15mm, Cr-Mo
Cones: alu 7075-T6, push-in (both sides)
Holes: 28H
Pillar straight-pull triple butted 2.2/1.7/2.0 spokes
RIM SPECIFICATION
Dedicated for wide tires (2.3”-2.6”)
Sizes: 27.5", 29”
Holes: 28H
Joint: sleeved
Outer width: 37mm
Inner width: 30mm
Height: 25,8mm
ERD: 694mm (29”)
Weight: 515g
