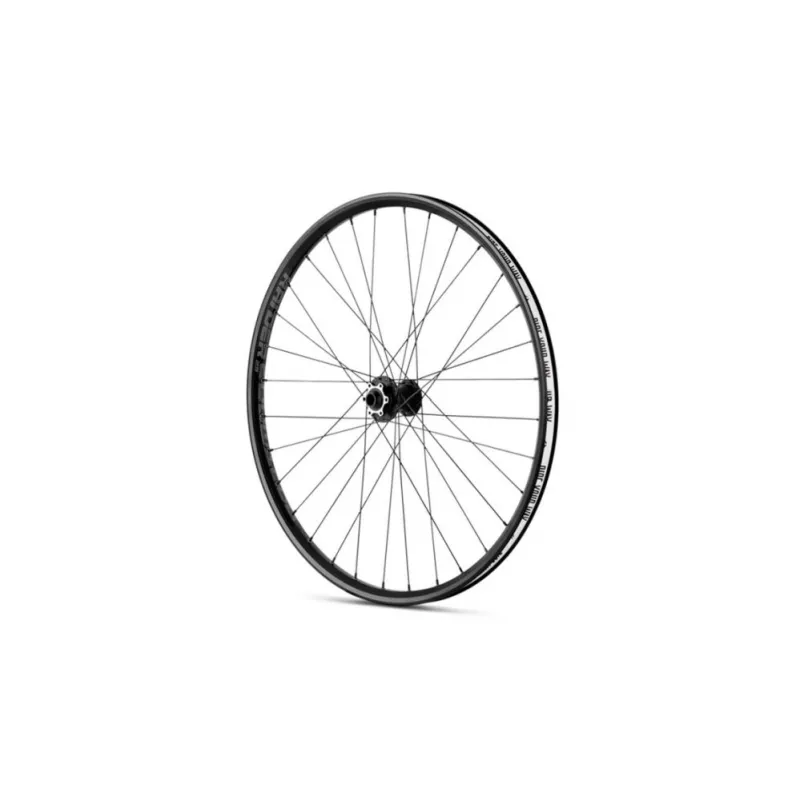

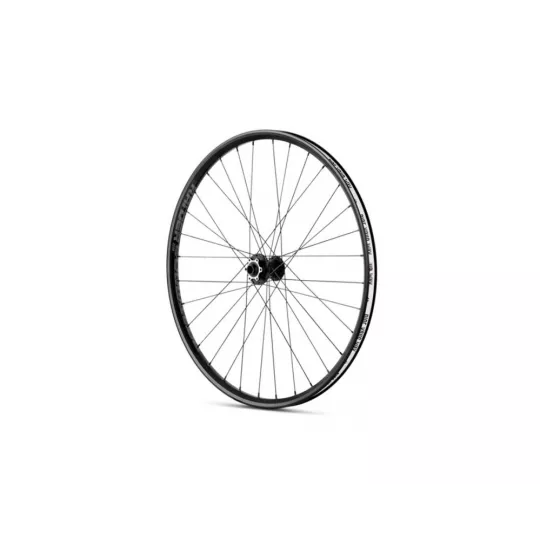

Dartmoor Raider 27,5 100x15 / 110x20 mm - front wheel

Dartmoor Raider wheel - Tubeless ready

Affordable 27,5" trail/enduro tubeless-ready wheels based on Dartmoor Raider rims. Available in Boost standard or non-Boost standard. Rear wheels are equipped with Reel v.2 142/135x12mm hub with 4 sealed bearings and reliable steel freehub with 3 pawls system. All bearings are filled with waterproof synthetic Mobil grease. Front wheel are equipped with Reel 15/20 front V.2 hub 100x15/110x20mm (with 2 sealed bearings). Wheels come with Ride Your Way nylon rim tape and taper grip brass nipples, which are designed to achieve maximum grip without the need for thread lock. The upper part of the nipple thread is tapered inward to lock the spoke in place during the wheel building and help the spoke to stay tight also after use. Rear wheels are equipped with regular Shimano type freehubs. SRAM XD freehub is also available as a spare part. Shimano Microspline freehub is not available.

SPECIFICATION
Sizes: 27.5; 29"
Holes: 32
Rims: Raider/sleeved joint
Rear hub: Reel  v.2 142/135x12mm
Front hub: Reel 100x15mm/110x20mm
Spokes: Pillar 2.2/2.0 black
Nipples: Pillar brass/Taper Grip black
Recommended tire range size: 2.1"-2.5"
Weight: 1026g (27.5" front); 1256g (27.5" rear); 1080g (29" front); 1305g (29" rear)

 ------------------------------------------

HUB SPECIFICATION:

Front wheel:

REEL 15/20 Disc 32 H front hub
Reliable front hub to use for Enduro, All Mountain, Freeride and Dirt Jumping. Equipped with 2 high quality sealed bearings with custom selected Mobil waterproof grease and full contact seals.
Available in: standard MTB 100x15mm size with spare 110x20mm side caps in set.

SPECIFICATION
Sizes: Disc 100x15/110x20mm;
Bearings: 2 precision sealed bearings with high density grease, full contact sealings
Bearings type: 6804
Hub-shell: alu 6061-T6
Cones: alu 7075-T6, push-in (both sides)
Holes: 32H
Weight for Disc version: 183g (110x20mm); 189g (100x15mm);

Rear wheel:

WEIGHT:  433g (135/142x12mm)

SIZE: 142/135x12mm

HOLES: 32H

BEARINGS: 5 precision sealed bearings with high-density grease and full contact sealings

BEARINGS TYPE: body: 2x6902; freehub Shimano Hg: 3x6902; freehub SRAM XD: 3x15267

HUB-SHELL: AL 6061–T6

AXLE: 15mm, cr-Mo

CONES: AL 7075–T6, push–in (both sides)

FREEHUB: Cr-Mo steel, common Shimano
HG or SRAM XD

PAWLS: 3 pawls

ENGAGEMENT POINTS: 38


RIM SPECIFICATION
Dedicated for wide tires (2.1”-2.5”)
Sizes: 27.5", 29”
Holes: 32H
Joint: sleeved
Outer width: 31,4mm
Inner width: 24mm
Height: 21mm
Weight: 580g (27.5”)
