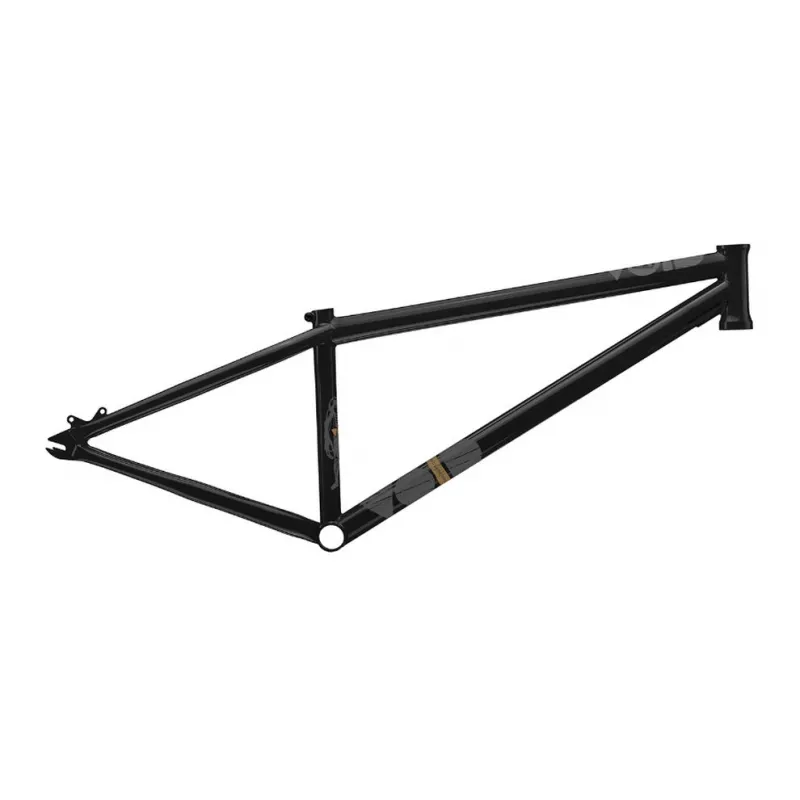

Octane One Void II
VOID DIRT FRAME FOR 26” WHEELS
The Void is a steel dirt oriented frame designed to work with 26” wheels. Custom butted tubes, beefed up in the stress areas keep the weight low and strength high. An additionally The Void is a steel dirt oriented frame designed to work with 26” wheels.
Custom butted tubes, beefed up in the stress areas keep the weight low and strength high. An additionally reinforced top tube / seat tube junction is tough enough to survive abuse from tailwhips and 360’s.
The Void is an advanced frame made from high quality double butted 4130 cro-mo steel. Same proven strength as last year.
MAIN FEATURES
-material: custom butted 4130 cromoly
-recommended fork travel: 80-140mm or rigid forks ~435mm
-compatible with all forks with 1&1/8” (1.125”) steertube
-integrated headset (Campy spec 45/45 deg, OD41.8mm)
-BB shell: standard threaded 68mm (compatible with MTB cranks and
BMX cranks with Euro BB)
-MTB hubs spacing (10 x 135 mm)
-27.2 mm seat post / integrated seat clamp
-disk brake only (no V-brakes mount)
-3M removable cable guides available separately
-no derailleur hanger
-weight: ~2.55 – 2.58kg
GEO
-angles with 525 mm fork (around 140mm travel): head angle: 67 deg, seat tube angle: 67.5deg, BB*: +9mm, WB*: 1045mm
-angles with 505 mm fork (around 120mm travel): head angle: 68 deg, seat tube angle: 68.5deg, BB: +3mm, WB: 1035mm
-angles with 485 mm fork (around 100mm travel): head angle: 69 deg, seat tube angle: 69.5deg, BB: -3mm, WB: 1025mm
-angles with 465 mm fork (around 80mm travel): head angle: 70 deg, seat tube angle: 70.5deg, BB: -9mm, WB: 1015mm
-angles with 435 mm rigid fork: head angle: 71.5 deg, seat tube angle: 72 deg, BB: -19mm, WB: 1004mm
*BB: bottom bracket height
*WB: wheel base
