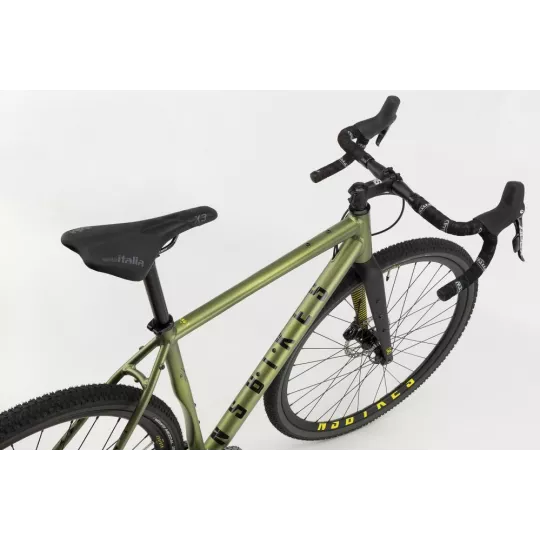

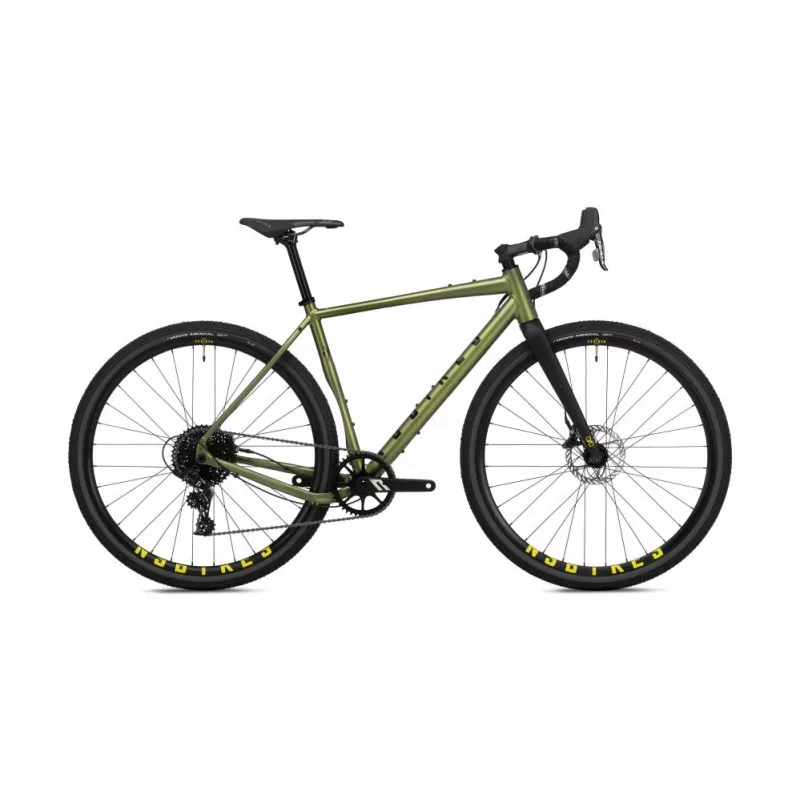

NS Bikes RAG+ 1 - gravel bike - Black/Green

 NS Bikes RAG +1 Gravel bike

GRAVEL CYCLING HAS EXPLODED RECENTLY AND IT’S NO WONDER. THESE BIKES ARE TRULY DO-EVERYTHING MACHINES, BOTH FOR BEGINNERS AND EXPERIENCED CYCLISTS. WE WERE IN THE GAME FROM THE BEGINNING WITH A GRAVEL BIKE THAT HAD DIRT HERITAGE IN ITS DNA. THE RAG+ HAS BECOME A FAVORITE AMONG OUR EMPLOYEES AND FRIENDS, EVEN THOSE WHO WOULD NEVER EVEN CONSIDER A DROP BAR BIKE BEFORE. THE RANGE OF APPLICATIONS IS ENDLESS - FROM COMMUTING TO AMATEUR CX RACING, OR SIMPLY TO BE USED AS A FITNESS BIKE. MULTIPLE MOUNTING POINTS ALLOW YOU TO TAKE ANYTHING YOU NEED ALONG WITH YOU, SO THE RAG+ IS ALSO READY FOR YOUR NEXT BIG ADVENTURE. RAG IS SHORT FOR ROAD & GRAVEL AND THE 'PLUS' IS THERE BECAUSE YOU CAN RUN IT WITH STANDARD 700C ROAD TIRES, 700C GRAVEL TIRES (UP TO 45C) OR EVEN 27.5” WHEELS WITH TIRES AS BIG AS 2.2”! IT FEATURES THE LATEST TECHNOLOGIES INCLUDING A PROPER 1X DRIVETRAIN WITH A WIDE RANGE CASSETTE, DISC BRAKES AND THRU-AXLES. THE ELEGANT ALUMINUM FRAME IS COMPLEMENTED WITH A FULL CARBON FORK. THE 2022 MODEL HAS UNDERGONE GEOMETRY REVISIONS THAT MAKE THIS BIKE MORE STABLE AND COMFORTABLE: THE HEADTUBES ARE TALLER, PLACING THE RIDER IN A MORE COMFORTABLE POSITION. WE DIDN’T GO TOO FAR THAT THOUGH – WE STILL WANT TO RETAIN THE SPORTY CHARACTER OF THE BIKE), THE REACH IS LONGER AND HEAD ANGLE IS SLACKER.
INTENDED USE CATEGORY 2: ROAD & GRAVEL

 VIDEA:

 NS Bikes - RAG+

 NS Bikes - Sam Pilgrim RAG+ Beyond the Race

MAIN FEATURES:

• TOUGH AND LIGHT ALLOY FRAME WITH BIGER HT IN L&XL SIZE
• FULL CARBON FIBRE FORK
• TUBELESS COMPATIBLE WHEELS
• THRU AXLES FRONT AND REAR
• SRAM APEX 1X DERAILLEUR
• PRO 4.0 HYDRO-MECHANICAL DISC BRAKES
• WTB RIDDLER 45C TIRES
• CLEARANCE FOR 650B TIRES UP TO 2.2"

NEW FOR 2022:

• REVISED GEOMETRY (LONGER HEAD
• TUBES, SLACKER HEAD TUBE ANGLE)
• REVISED FRAME TUBES
• SHORTER STEMS 70 / 80 / 90 / 100MM
• FAT WTB 45C TIRES
• FLIP FLOP STEM

BIKE Specifications:

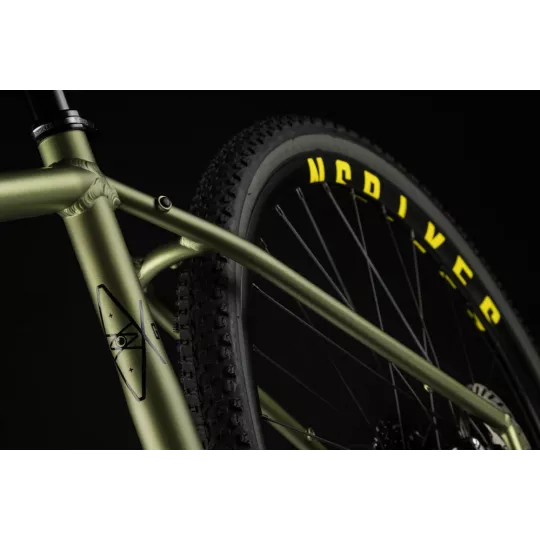

• Frame : NS AL6061-T6 custom formed and butted tubes, tapered integrated headtube, 142x12mm dropoutsFork NS Gravel+ full carbon
• Fork: 15mm dropouts, NS thru axle
• Headset: GW integrated tapered IS42/52, sealed
• Stem: RAG+ Stem 31.8 S:80mm, M:90mm, L:100mm, XL:110mm, angle, - 8°
• Handlebar: NS Flare 31.8, 420mm, 440mm, 460mm
• Bartape:  Selle Italia SMOOTAPE Gran Fondo
• Brakes:  SRAM Apex hydraulic disc, 160mm rear & front
• Shifter: SRAM Apex 11spdDerailleur Sram Apex type 2.1, long cage, 11spd
• Bottom bracket: Shimano PF 86,5CranksRondo S:170mm, M:172.5mm, L:175mm 42t
• Chain:  SRAM, 11 spd
• Cassette:  Sun Race CSMS7 11-42t
• Rims:  Alex Draw 2.1P Asymmetrical, 32h, tubeless compatible

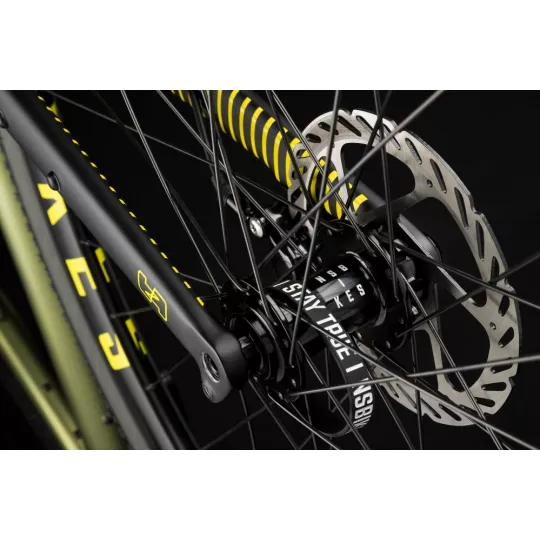

• Front Hub:  NS Bikes 100x15mm (sealed bearings)
• Rear Hub:  NS Bikes 142x12mm (sealed bearings)
• Spokes:  butted 2.0-1.5-2.0 w/ 14mm nipplesTiresVittoria Mezcal III 700x45c
• Seatpost:  Kalloy 27.2SaddleSelle Italia X3
• Weight:  ~9.6 kg (* M size on tubeless ready setup, w/o pedals)
