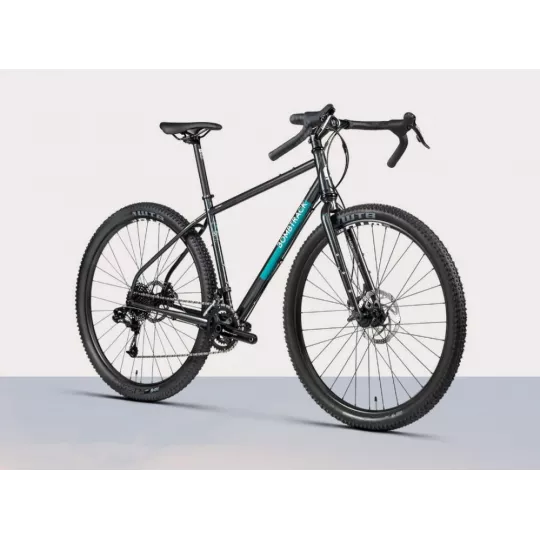

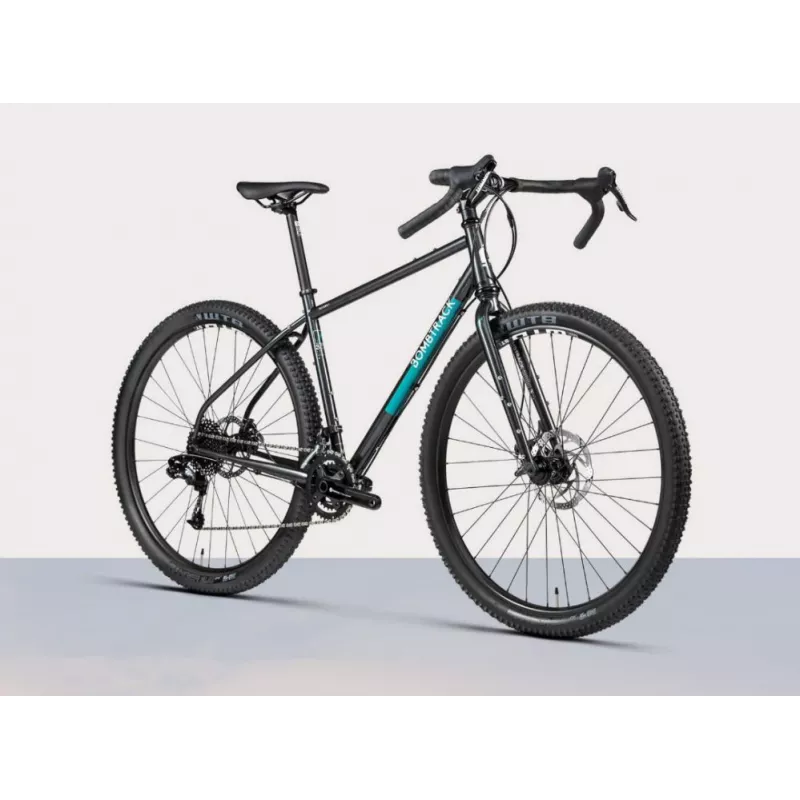

Bombtrack Beyond 1
The most accessibly-priced adventure-touring bike we produce, the Beyond 1 serves as the perfect first bike for fledgling adventurists. With tyres as wide as a mountain bike accompanied by a 28 / 40T chainset, this bike will be able to reach wherever you’ve plotted on the map. Leverage-boosting bars provide added control, and an eye-watering selection of mounting points mean you won’t need to leave anything at home. Its simplicity makes it easy to service, too.
Made to cross countries and continents via all kinds of roads and trackways...”
VIDEO:
Bombtrack Beyond 1 bike
Specification:
Frame:
WHEEL SIZE: M - XL 29'' x 2.0'' / XS - S 27.5'' x 2.0''

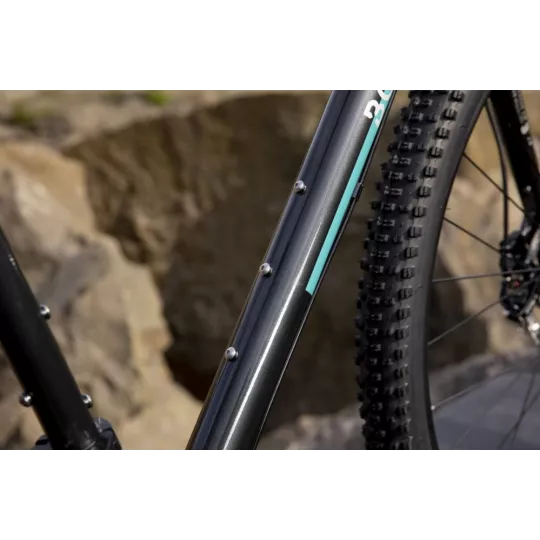

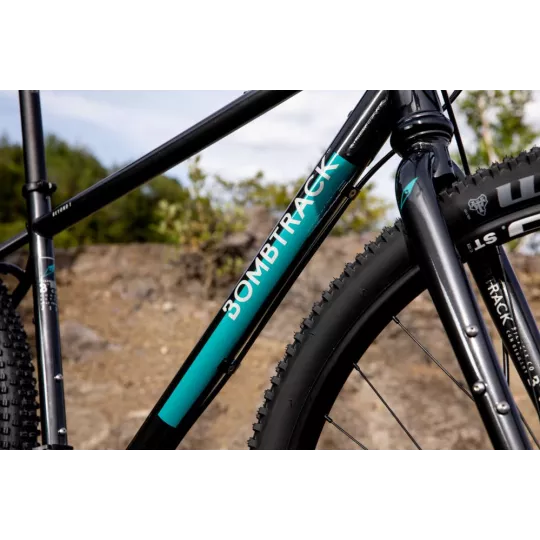

FRAME 4130 double butted crmo, TA, rack / fender mounts, internal light cable routing, 73 mm BSA BB shell
FORK 4130 crmo, double butted blades, TA, 1.1/2'' - 1.1/8'', fender / rack /
triple cage mounts, internal hub dynamo cable routing
HEADSET Sealed external aheadset, 1.1/2'' - 1.1/8''
Komponenty:
Color Glossy Metallic Black
Frame - 4130 double butted crmo, TA, rack / fender mounts, internal light cable routing, 73 mm BSA BB shell
Fork - 4130 crmo, double butted blades, TA, 1.1/2'' - 1.1/8'', fender / rack /
triple cage mounts, internal hub dynamo cable routing

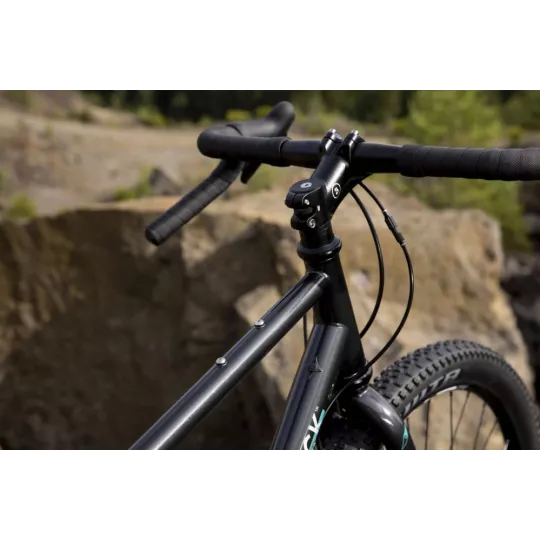

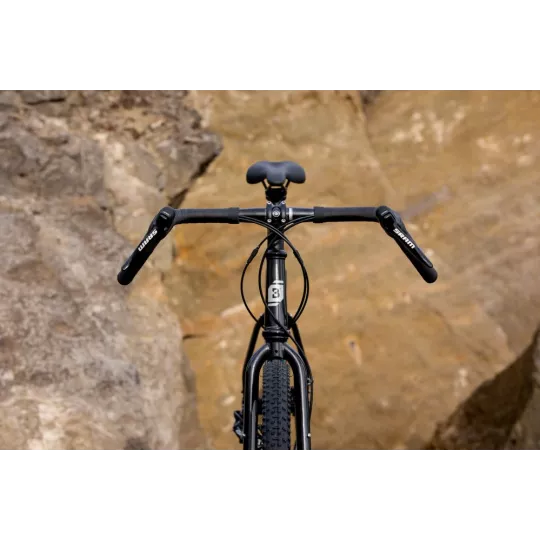

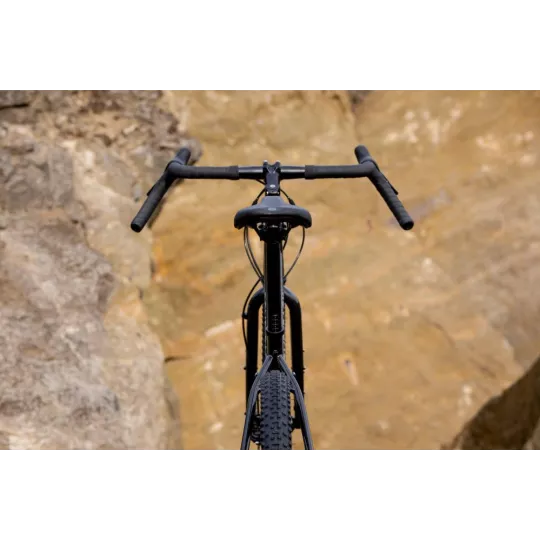

Handlebar - BOMBTRACK BEYOND travel bar, 31.8 mm, 30° flare
Grips - BOMBTRACK COMMAND bar tape
Stem - BOMBTRACK WANDER forged aluminium stem, +17°
Headset - Sealed external aheadset, 1.1/2'' - 1.1/8''
Levers - SRAM Apex double tap mechanic
Shifter - SRAM Apex double tap 2 x 10
Brakes - TRP SPYRE C mechanic disc brakes with 180 mm F / 160 mm R rotors

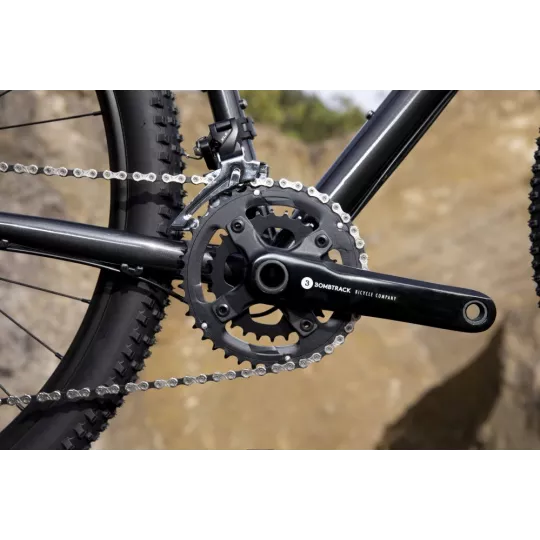

Crankset - BOMBTRACK AMES forged aluminium crank, 24 mm spindle
BB BSA sealed BB, external cups
Chain - KMC X10 chain, 1/2'' x 11/128'', 114L
Chainring - Aluminium / Steel, 40 / 28 T
Cassette - SRAM PG-1020 10-speed, 11 - 36 T
Front derailleur - Microshift FD-M612-B
Rear derailleur - SRAM GX, short cage
Front hub - BOMBTRACK GRAD sealed hub, 6-bolt disc
Rear hub - BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc
Through axle - 15 x 100 mm / 12 x 142 mm
Front rim - WTB ST i23 double wall, TCS 2.0, 32h
Rear rim - WTB ST i23 double wall, TCS 2.0, 32h

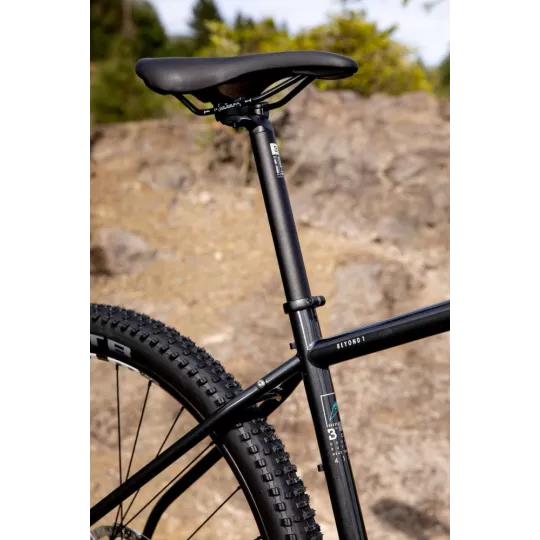

Saddle - BOMBTRACK FUZZ

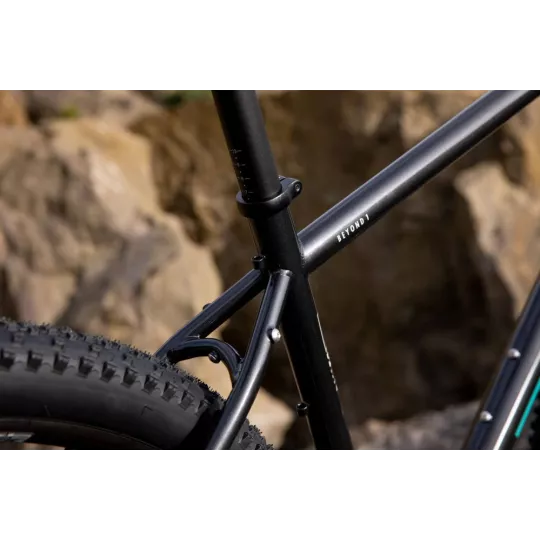

Seat post - BOMBTRACK BEECH 27.2 mm x 415 mm
Seat clamp - BOMBTRACK ORIGIN 29.8 mm
Front tire - WTB RANGER TCS LIGHT / FAST ROLLING XS - S 27.5'' x 2.0'' /
M - XL 29'' x 2.0'', tubeless ready
Rear tire WTB RANGER TCS LIGHT / FAST ROLLING XS - S 27.5'' x 2.0'' /
M - XL 29'' x 2.0'', tubeless ready
Weight - 12.9 kg (size M)
Weight frameset - 2540 g frame (size M, incl. TA, bolts, seatclamp, hanger) / 1500 g fork (300 mm steerer, incl. TA)
Maximum rider - weight 140 kg incl. luggage
