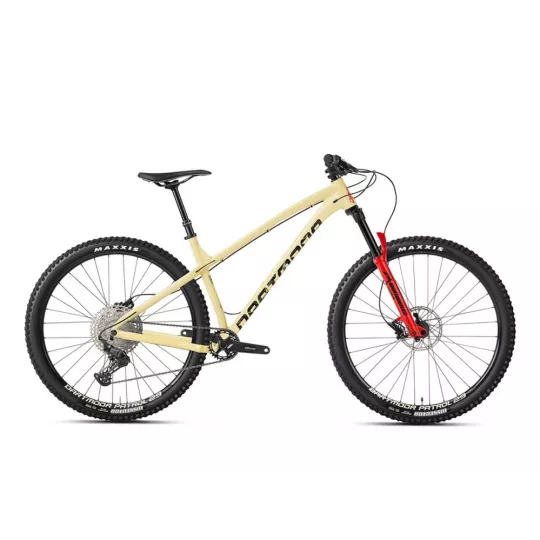

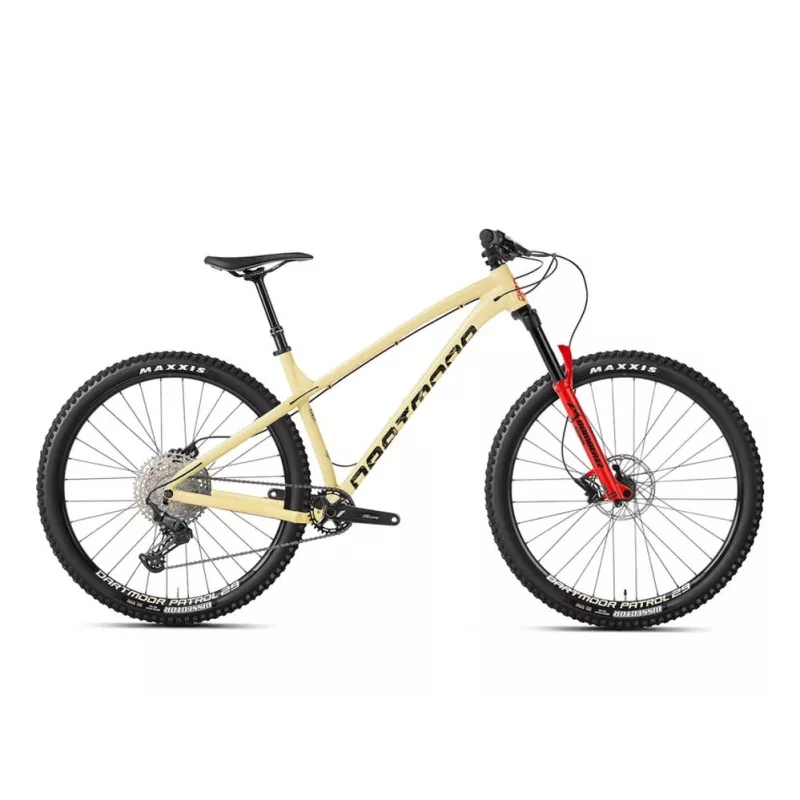

Dartmoor Primal Pro -
The new Primal 29 is an ideal solution for those who like long-distance mountain rides. The stable and comfortable 29” wheels will be a great choice for day trips in the Alps. The geometry of the new Primal 29 frame is slightly less aggressive than in new Primal 27.5 which is an advantage when riding longer distances. The frame is dedicated for the forks with about 140mm travel.
The main features of the new Primal Pro 29 bike are: new Primal 29 Boost frame, Suntour Aion35 Boost fork, 2-pcs Tribe direct mount crankset, 11-46T Sunrace cassette, 11-speed SRAM NX gears, top quality compound Schwalbe Hans Dampf 29x2.35" tires and KindShox E20-I dropper post with 125mm or 150mm travel.
Primals - general info
Plus size wheels opened a world of new possibilities for the hardtails – wider tires improve the traction and riding comfort. Popularity of the 27.5” plus size tires renewed also the popularity of the 29-er hardtails which are the best choice for those who want to enjoy long rides in the mountains. The new series of our Primal frames and bikes are designed either for 27.5” wheels with a wide range of tire width - from 2.3” to 2.8” or for 29” wheels with tires wide up to 2.35”. Both new frames - Primal 27.5” and Primal 29” boast new more aggressive geometry with a slacker head tube angle and with Boost standard dropouts.
Primal & Sparrow - First look (Eng)
SPECIFICATION:
Frame: Sand storm, AL 6061-T6
Frame size: Small, Medium, Large
Wheel size: 29”
Fork: Marzocchi Bomber Z2 29", Boost, travel 140mm, axle 15mm, tapered
Headset: Dartmoor Blink OEM
Derailleur: Shimano Deore M5100 1X11
Shifter: Shimano Deore M5100-R, 11–speed
Brakes:Shimano Deore MT-500, 2-piston brakes, rotors 180mm
Crankset: Shimano Deore FC-5100
Chainring: 30T, BCD 96mm
Cassette: Shimano Deore M5100-11, 11-51T
Chain: KMC X11
Pedals: without
Rims: Dartmoor Patrol 29", 32H, F/V, tubeless ready
Front hub: Dartmoor Reel Boost 110x15mm, 32H
Rear hub: Dartmoor Reel Boost 148x12mm, 32H
Tires: Maxxis Dissector 29X2.4, WT, Foldable, EXO
Handlebar: Race Face Atlas 785mm, Ø31.8mm, rise 1.5"

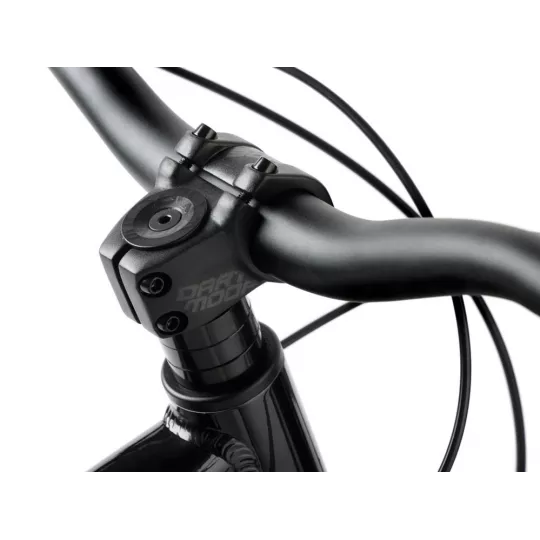

Stem: Dartmoor Viper, Ø31.8mm
Grips: Dartmoor Maze Lite
Saddle: Dartmoor Leaf Pro
Seat post: X-Fusion Manic, travel 170mm (XL, L) / 150mm (M), Ø30.9mm
Weight: 13.60kg (w/o pedals)

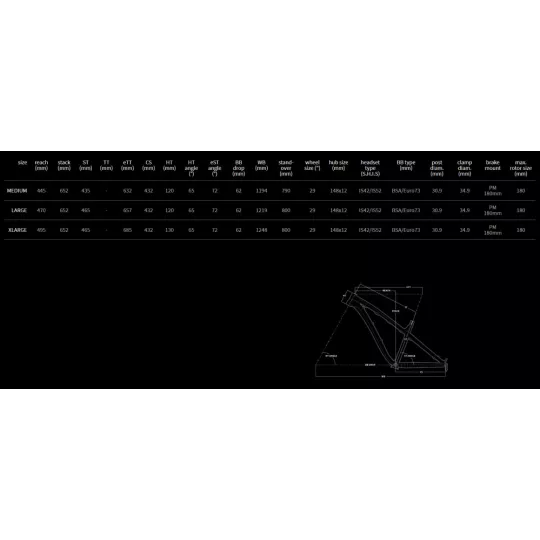

Geometry - see picture
