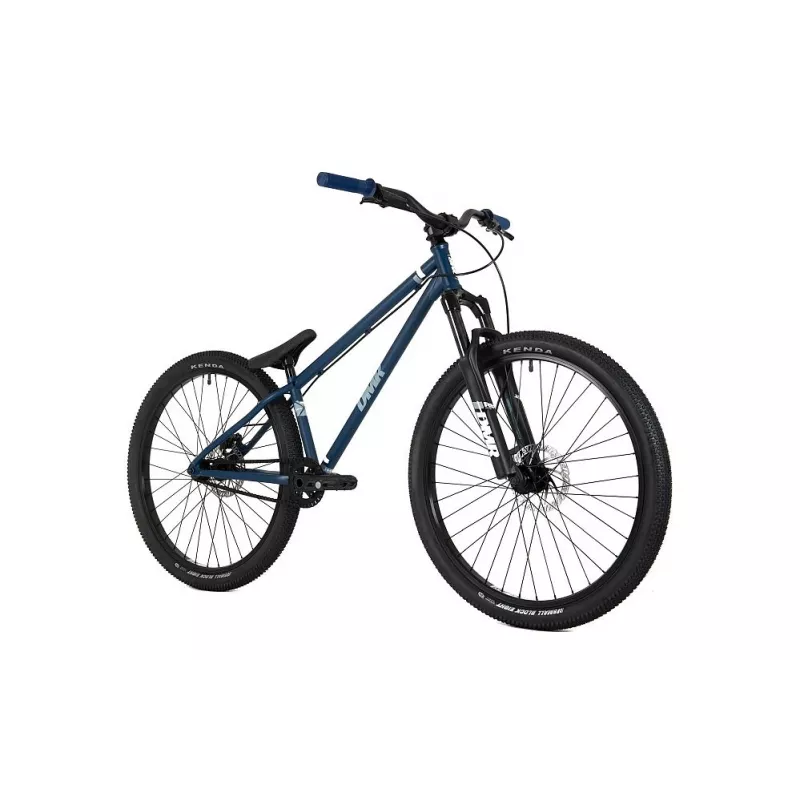

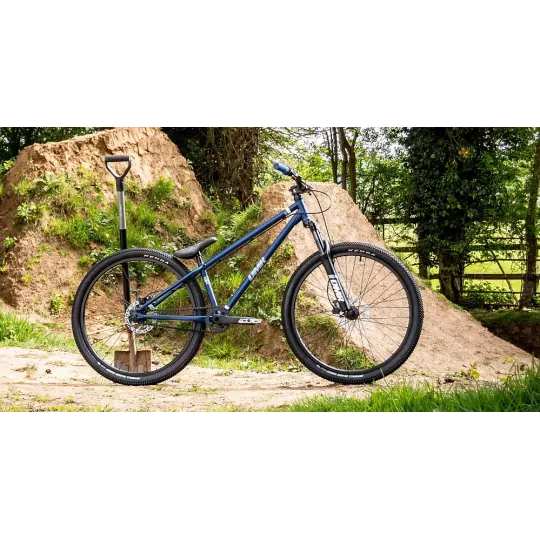

DMR Sect Dirt Jump Bike -
The Complete DMR Sect Dirt Jump Bike uses the same legendary dirt geometry as found on our DMR Sect frame, including a super short rear end for spins and flips, 69º head angle for stability, great toe clearance for barspins and low standover for tailwhips.
The DMR Sect bike also shares much of its DNA with the DMR Sect frame such us 4130 chromoly tubing for ultimate strength-to-weight ratio, integrated headset cups and a threaded Euro BB for ease of servicing. The new Sect complete features hydroformed chainstays with an integrated yoke to maximise tyre clearance. There is also an integrated seat clamp to save weight.
Frame: DMR 4130 chromoly.
Fork: RST Dirt 100 with rebound adj.
Headset: FSA Orbit C cartridge.

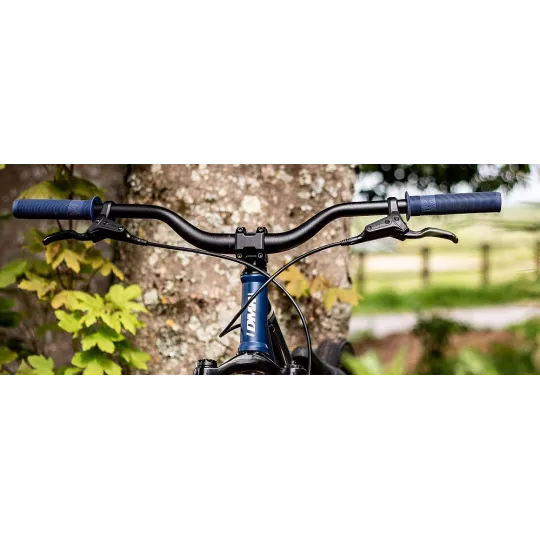

Handlebar: 31.8 aluminium 740mm 2” rise.
Stem: 3D Forged 40mm.
Brakes: Tektro M275 hydraulic 160mm front and rear.
Crankset: Two-piece crank arms with integrated 24mm axle.
Wheels: Alex DM24 26” double wall rims on KT DJ hubs.
Tyres: Kenda Small Block 8 26x2.1”.
Chainring: 30t.
Freewheel: Odyssey 13t.
Chain: YBN MK918 Half Link Black.
Pedals: DMR V6.
Grips: DMR Sect grips.
Weight 13.5 kg
Geometry:
Reach - 394mm.
Stack - 570mm.
Head Angle - 69º.
Seat Tube Angle - 72º.
Top Tube Length - 570mm.
Front Centre - 650mm.
Rear Centre - 390mm.
Wheelbase - 1041mm.
Head Tube Length - 117mm.
Seat Tube Length - 280mm.
Bottom Bracket Drop - 15mm.
